| Place of Origin: | CHINA |
|---|---|
| ชื่อแบรนด์: | EVERSUN |
| ได้รับการรับรอง: | ISO,CE |
| Model Number: | EDS |
| Minimum Order Quantity: | 1set |
| ราคา: | โปร่ง |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
| Supply Ability: | 5000set/year |
| Noise: | ≤70db | Main Function: | Lift conveying |
|---|---|---|---|
| Conveying Angle: | 0～90° | Size: | Customized |
| Advantage: | Cover a small area | Material: | Stainless Steel |
| Colour: | Sandblasting customization | Installation: | Simple and quick installation |
| Suitable For: | Powders, granules, and other bulk materials | Warranty: | 1 year |
| Usage: | Food processing, chemical industry, agriculture, mining, and more | Key Words: | Screw conveyor |
| Trough Type: | U-trough or tubular |
Product description
A screw conveyor is a continuous conveying equipment that uses rotating spiral blades to push materials along the axial direction of the casing for transportation.A screw conveyor is a continuous conveying equipment that uses rotating spiral blades to push materials along the axial direction of the casing for transportation. It can achieve horizontal, inclined or vertical material transportation, especially suitable for transporting powdery, granular or small block materials, but not suitable for transporting materials that are prone to deterioration, have high viscosity or are prone to agglomeration.
Working principle
The working principle of the screw conveyor is based on the friction and thrust between the rotating spiral blades and the materials: When the driving device drives the screw shaft and the spiral blades fixed on the shaft to rotate, the blades will exert an axial thrust on the materials inside the casing. Due to the gravitational force of the materials and the friction with the inner wall of the casing, the materials will not rotate along with the spiral blades, but are continuously pushed by the blades and move forward along the axis direction of the casing, eventually being discharged from the discharge port. This process is similar to "screw material pushing", and the continuous transportation of materials is achieved through the rotation of the spiral blades.
Product characteristics
- Simple and compact structure: mainly composed of spiral blades, casing, driving device, etc. It has few components and occupies a small area, making it easy to install and arrange in a confined space, thus saving land resources.
- Good sealing performance: The casing is usually of a closed structure, which can effectively prevent the scattering and dust generation of materials during transportation, reducing environmental pollution and also preventing foreign objects from mixing into the materials, ensuring the purity of the materials.
- Flexible conveying direction: It can not only achieve horizontal transportation, but also perform inclined or even vertical transportation. It can be flexibly arranged according to the actual production requirements, adapting to different working conditions.
- Convenient operation and maintenance: The operation process is stable and reliable, the operation is simple, the daily maintenance workload is small, the maintenance cost is low, and it is easy to achieve automatic control, reducing the manual operation intensity.
- Strong adaptability: It can convey various forms of materials such as powders, granules, and small blocks. It can be applied in multiple industries such as grains, mines, building materials, and chemicals, with a wide range of applications.
- Continuous and efficient transportation: It can achieve continuous material transportation, with high transportation efficiency, meeting the demand for material transportation volume in large-scale production, and ensuring the smooth connection of the production process.
Product parameter
|
||||||||||||||||||||||||
Production line diagram
1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

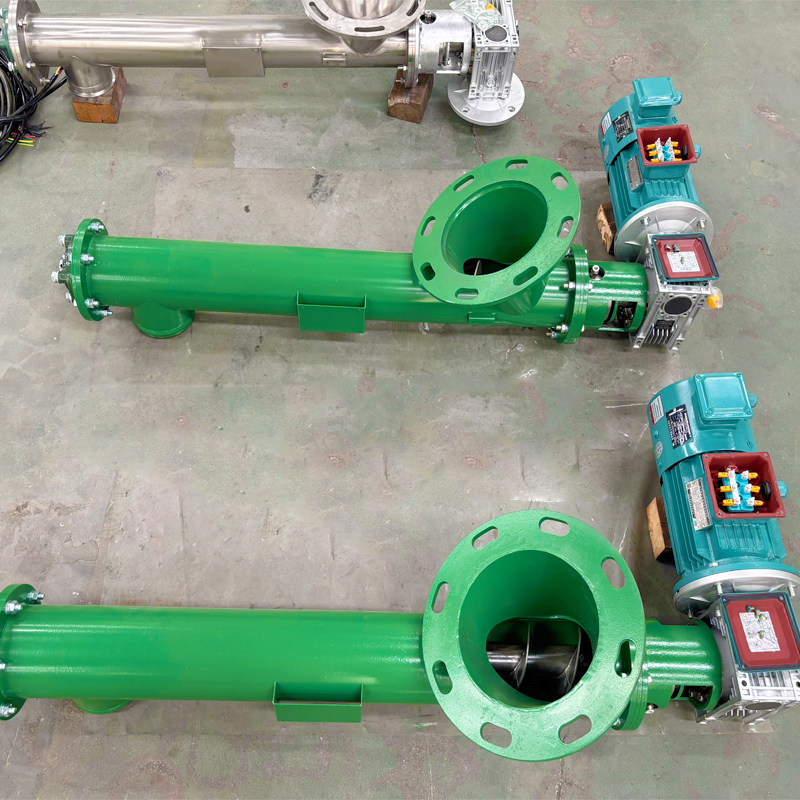

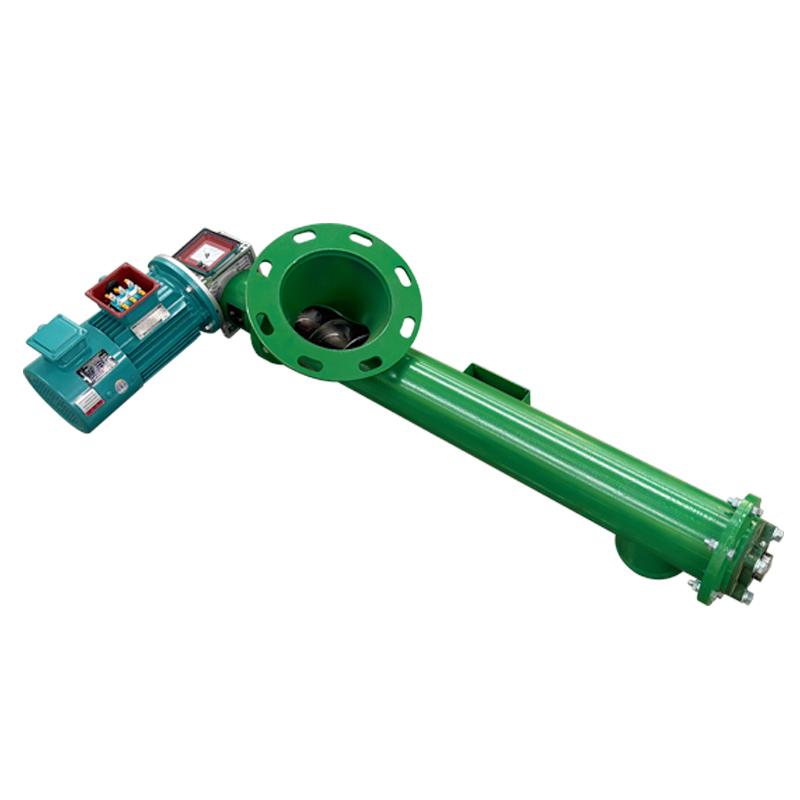

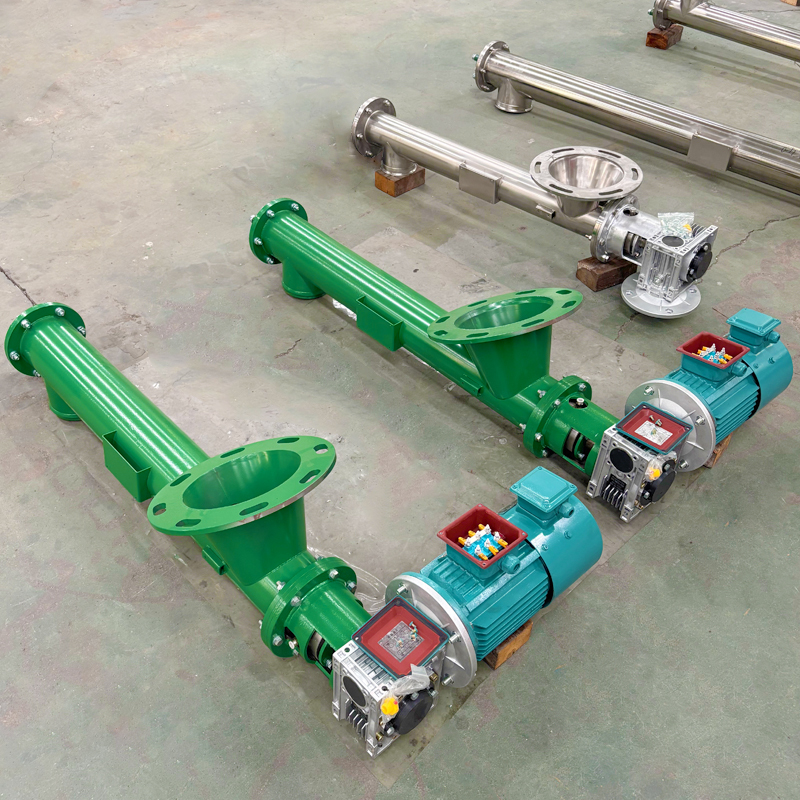

Product display
Product details
Product application
