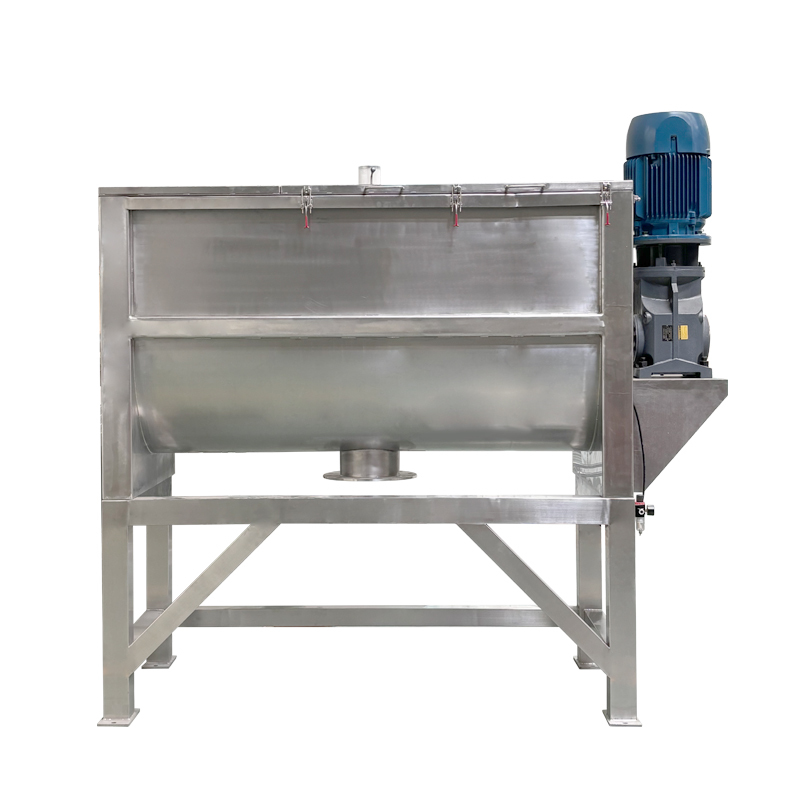

Ribbon Blender

Product description

The helical mixer is an efficient heavy-duty industrial mixing equipment. Its core feature is the unique helical-shaped stirring blades inside. It is particularly adept at handling high-viscosity, easily agglomerating or solid-particle-containing difficult-to-mix materials. During the mixing process, it can achieve powerful yet gentle stirring effects. The equipment has a sturdy structure, reliable operation, and clean discharging. Therefore, it is widely used in the food, chemical, and new materials industries, and is an ideal choice for handling complex mixing tasks.

Working principle

The core working principle of the spiral mixer is to utilize its unique double-spiral stirrer to drive the materials to perform three-dimensional circular motion within the container.
Specifically, when the stirrer rotates:
The outer spiral blade pushes the material along the inner wall of the cylinder from both ends towards the center slowly.
The inner spiral blade, in the opposite direction, pushes the material from the center rapidly towards both ends.
As a result, the materials simultaneously undergo both axial and radial flow. During this process, the material layers are constantly being divided, exchanging positions, and achieving rapid, uniform and gentle mixing under the influence of convection, diffusion and moderate shear forces. Eventually, a high degree of homogeneity is achieved both macroscopically and microscopically.

Product features

1. Efficient and seamless mixing: Specifically designed for high-viscosity and prone-to-caking materials, it achieves three-dimensional forced convection, ensuring thorough and uniform mixing.
2. Gentle action and shape preservation: Mainly based on macroscopic convection, with low shear force, it can effectively protect the original physical properties of the materials.
3. Wide adaptability and broad range: By adjusting, it can be adapted to various materials ranging from powders to viscous paste-like substances, with high versatility.
4. Rapid discharging with minimal residue: The unique U-shaped trough body and open design ensure that the materials can be almost completely discharged.
5. Robust, durable, and easy to maintain: With a reliable structure and smooth operation, it is suitable for heavy-load conditions and continuous production, and has low maintenance costs.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

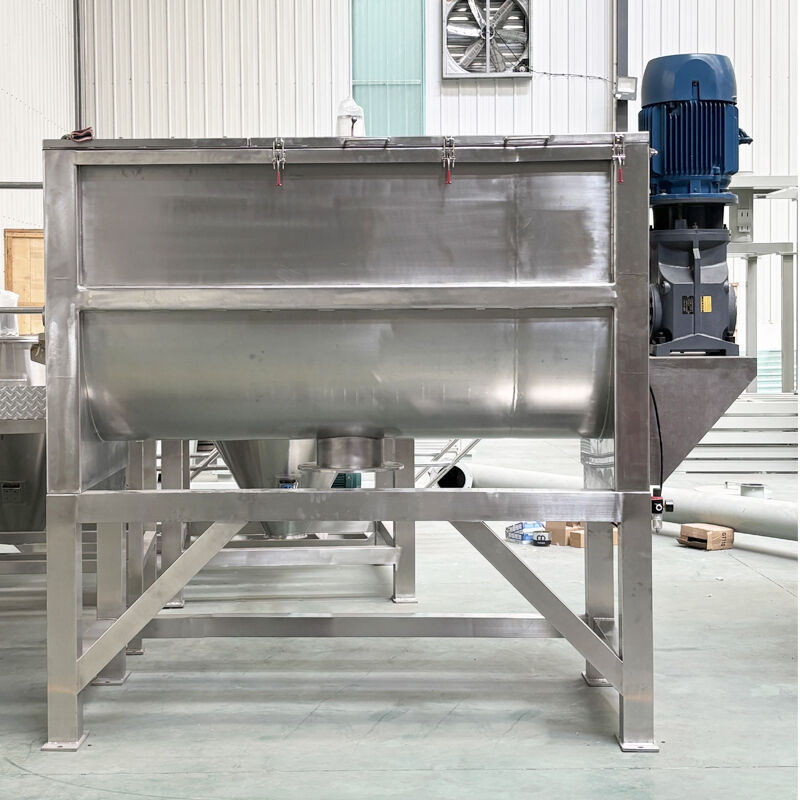

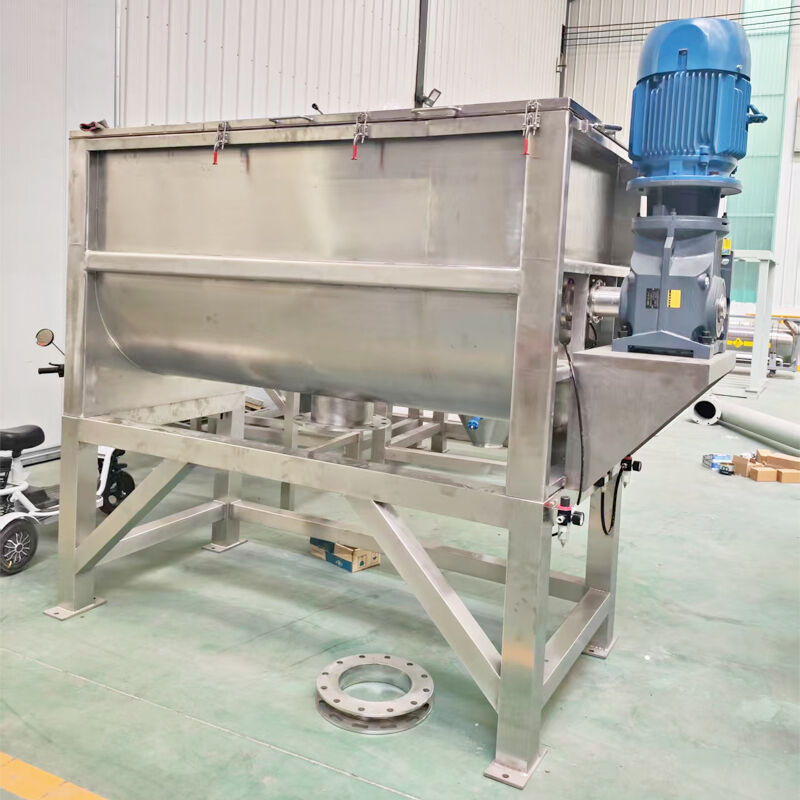

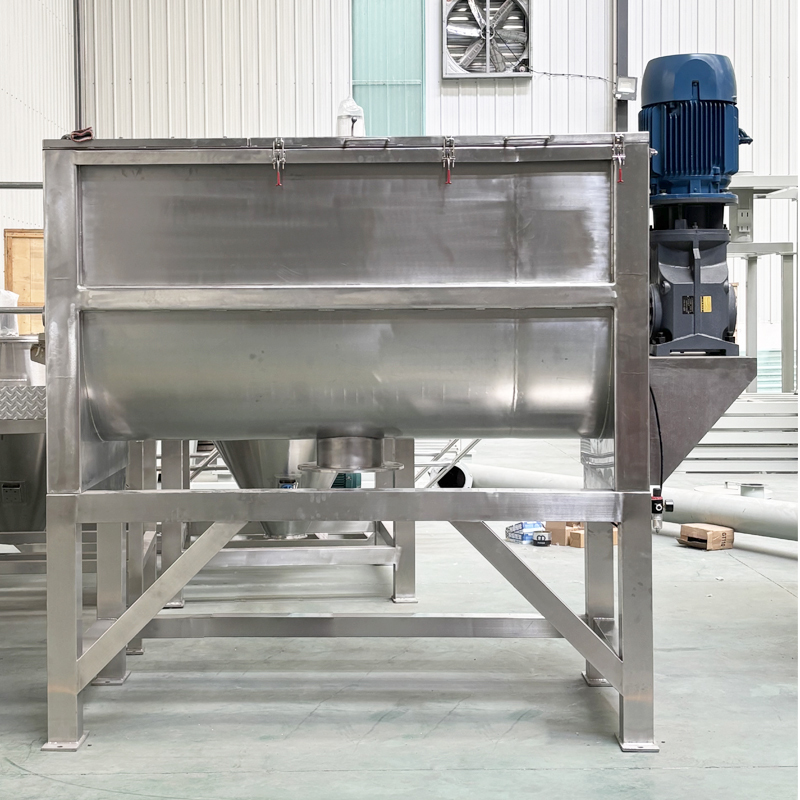

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.

Packaging & Shipping

Why Choose us

About us





Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
