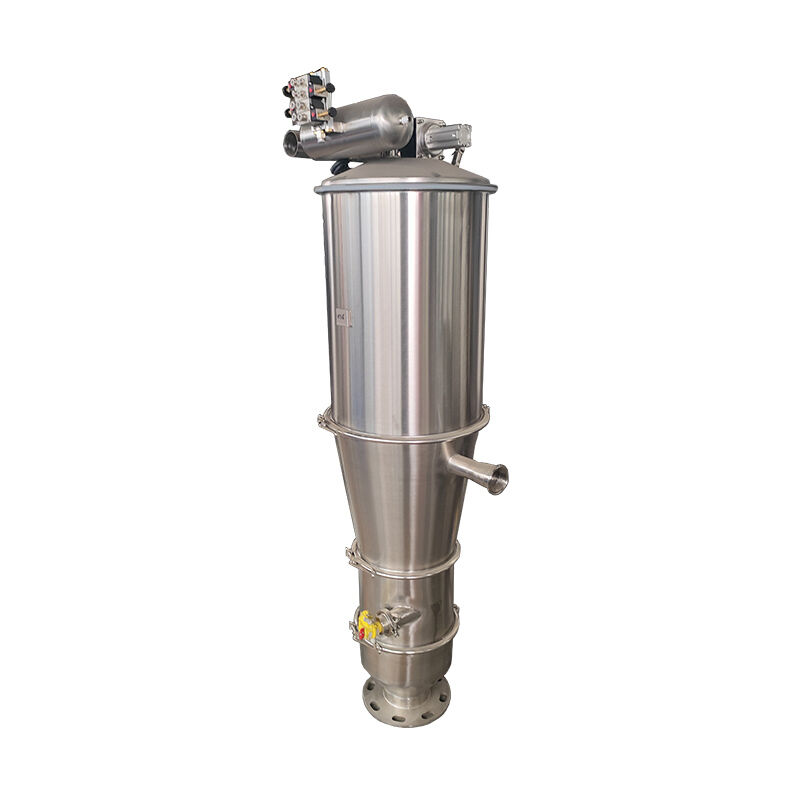

Vacuum Conveyor

Product description

The intermittent vacuum feeding machine is an automated conveying equipment specifically designed for powder and granular materials. It achieves efficient and dust-free material transportation in a sealed pipeline through intermittent and cyclic vacuum suction. This equipment has a compact structure and intelligent operation, significantly enhancing production efficiency and ensuring the cleanliness and safety of the production environment. It is widely used in industries such as pharmaceuticals, food, and chemicals that have strict requirements for hygiene and processes.

Working principle

The intermittent vacuum feeding machine achieves sealed transportation through an automated cycle: Firstly, the vacuum pump creates negative pressure inside the storage bin, drawing in the materials; then, the filter separates the air from the materials, ensuring the air is clean; once the set conditions are met, the system breaks the vacuum and activates the discharge valve, allowing the materials to fall into the downstream equipment by gravity; finally, the filter is automatically back-flushed for cleaning, preparing for the next cycle. The entire process is precisely controlled by PLC, ensuring high efficiency and dust-free operation.

Product features

1. Dust-free and Clean: Fully enclosed transportation, eliminating dust and meeting high hygiene standards.
2. Highly efficient and automatic: Automatic control, enhancing efficiency and reducing the need for manual labor.
3. Safe and reliable: No mechanical contact, optional explosion-proof feature, suitable for sensitive materials.
4. Protecting the materials: Gentle transportation, maintaining the original properties and integrity of the materials.
5. Flexible and cost-effective: Compact structure, flexible installation, easy maintenance, and low operating costs.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Production line diagram

It works will like the below
1. Put your materials into the weighing silo
2. Enter the required weight of each material in the control system.
3. The ingredient you want will enter the weighing hopper.
4. The weighing hopper is connected with a vacuum conveyor.
5. The vacuum conveyor will suck the material into the mixer
6. After mixing, the material will feed into the packing machine by the vacuum conveyor
7. The packing machine will fill 2kg of material into your bags and seal the bags

Product details

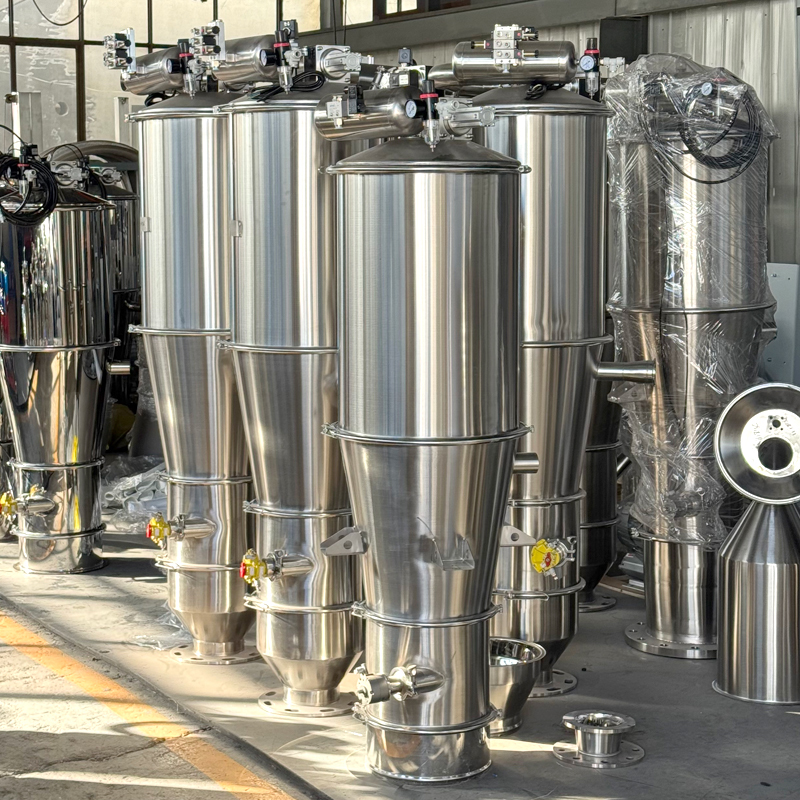

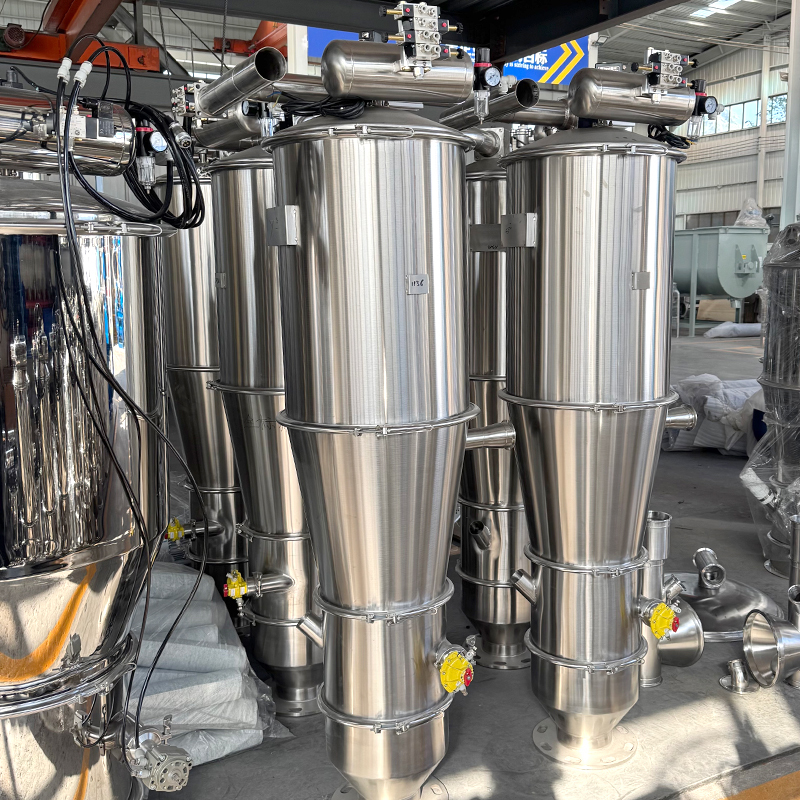

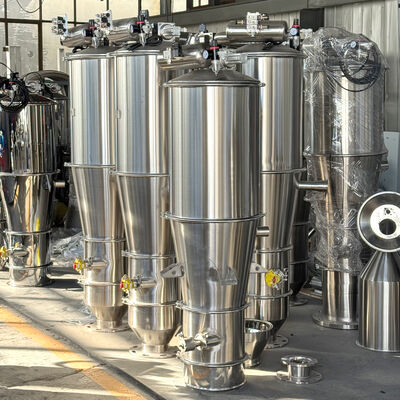

Product display

Application

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.

Packaging & Shipping

Why Choose us

About us



Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
