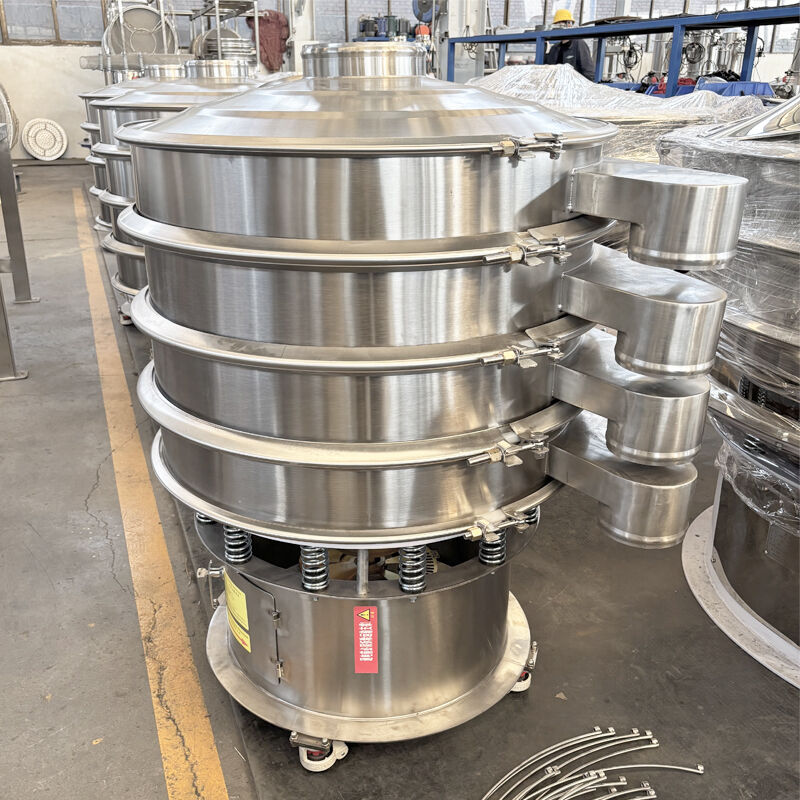

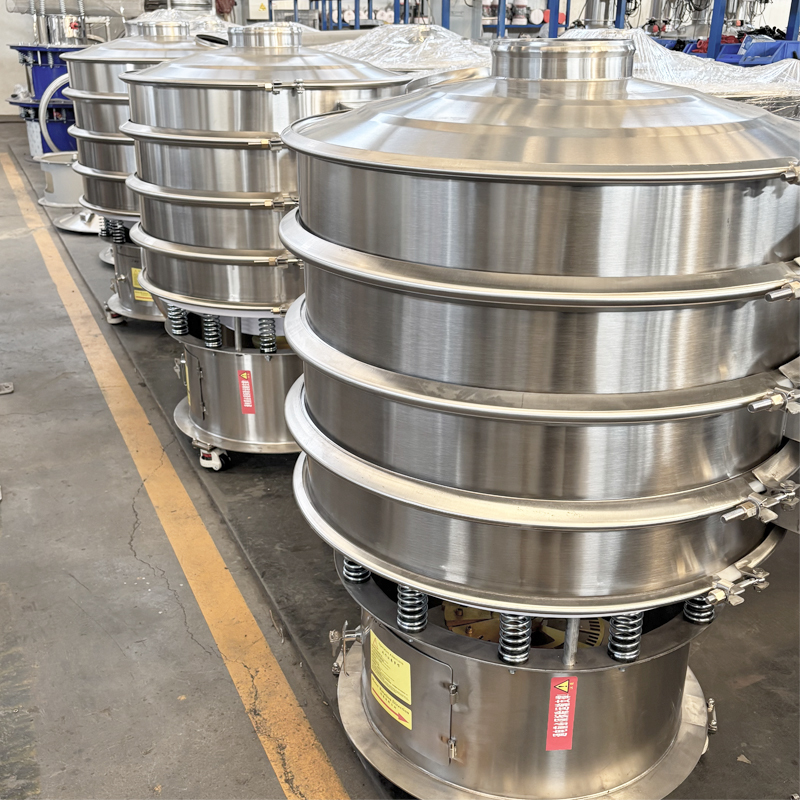

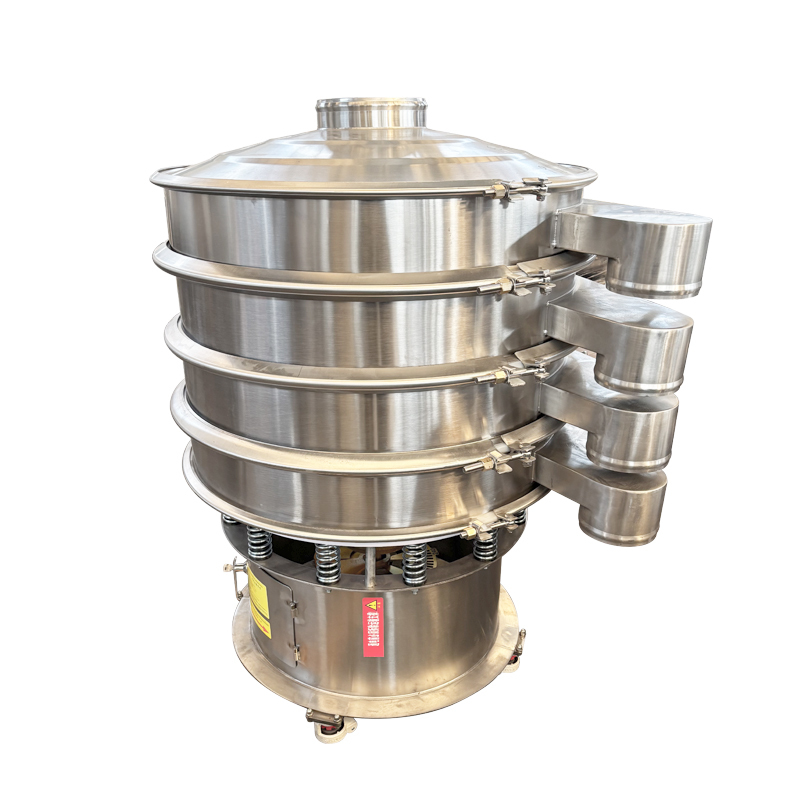

Vibratory Screening Machine

Product description

The rotary vibrating screen is a high-precision and high-efficiency fine powder screening machine, renowned for its low noise, fully enclosed structure and quick net change. It is suitable for screening, filtering and grading various forms of materials such as particles, powders and liquids. This equipment is small in size, light in weight, and easy to move. The outlet direction can be adjusted arbitrarily, and the parts in contact with the materials are usually made of stainless steel, meeting the hygiene standards of the food, chemical and other industries. It can be widely applied in the fields of chemical engineering, food, environmental protection, etc.

Working principle
The rotary vibrating screen utilizes a vertical vibration motor to drive the upper and lower eccentric heavy weights to rotate, generating three-dimensional combined vibrations in the horizontal, vertical and inclined directions. This vibration causes the materials to spread outward in a spiral pattern on the screen surface. Fine materials smaller than the sieve holes pass through the screen and are discharged from the discharge port, while coarse materials larger than the sieve holes are discharged from the discharge port. Thus, efficient screening is achieved. By adjusting the phase angle of the heavy weights, the movement trajectory of the materials can be changed to meet different requirements.

Features & Benefits

• Efficient and precise screening
  Multi-layer classification: Supports 1 to 5 layers of screen meshes, simultaneously achieving classification of 2 to 6 grades of materials.
  High efficiency: The material movement path is long, the screen surface utilization rate is high, and the screening efficiency is excellent.
• Exquisitely designed and hygienic
  Fully enclosed: Sealed structure, no dust flying or liquid leakage, avoiding cross-contamination.
  Compact in size: Compact structure, light weight, easy to move, no space occupation.
• Easy operation and maintenance
  Automatic material discharge: Coarse and fine materials are automatically discharged. It supports continuous operation and is easy to achieve automation.
  Flexible adjustment: The discharge port can be adjusted 360°, facilitating the connection of the equipment.
• Stable and durable operation
  Anti-clogging design: Unique vibration + cleaning device, effectively preventing the screen from getting clogged.
  Low noise and smooth operation: Smooth operation, low noise, friendly to the working environment.
  Easy maintenance: Simple structure, easy maintenance, low repair cost.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening
