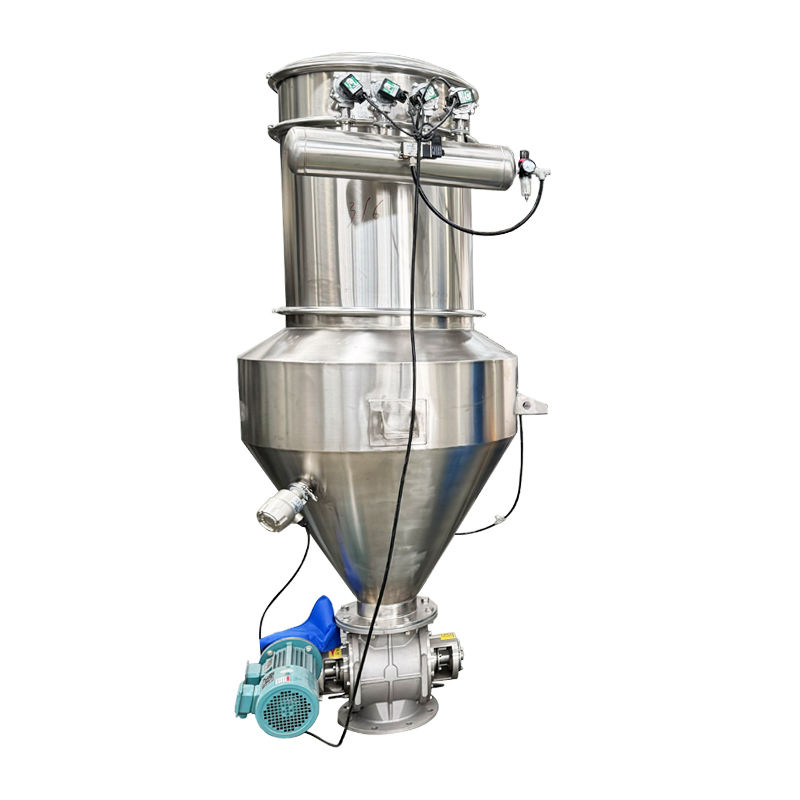

Vacuum Conveyor

Product description

The large-bellied vacuum feeder is a device that uses vacuum suction to transport materials. Its "large-bellied" structure increases the storage and transportation space for materials, enhancing the feeding efficiency. The equipment features a high degree of automation and a clean and environmentally friendly transportation process, effectively preventing dust from spilling out. It can be adapted to various materials such as granules and powders, and is widely used in industries such as chemical engineering, food, and pharmaceuticals, providing a convenient and reliable solution for continuous feeding on production lines.

Working principle

The working principle of the large-bellied vacuum feeder is as follows: A vacuum pump operates to create a negative pressure environment, generating vacuum suction within the system; under the negative pressure, materials are sucked into the pipeline from the feeding port and transported along the pipeline with the airflow; when the materials reach the separation device, they are separated from the airflow due to gravity and the structural design of the device and fall into the lower material bin; the separated gas, after dust removal and other treatments, is returned to the vacuum pump through the pipeline to form a cycle. The entire process utilizes vacuum suction to achieve the automatic transportation of materials, and through structural design, ensures the effective separation of materials and gas, guaranteeing the continuity and cleanliness of the transportation.

Product features

1. Large-capacity design: Unique "big belly" structure increases the storage and transportation space for materials, reduces the frequency of loading, and improves the supply efficiency.
2. Fully enclosed transportation: Adopting a pipeline-sealed system, it prevents material leakage and contamination, stops dust from spilling out, and ensures a clean working environment.
3. Strong adaptability: The vacuum suction force is stable, capable of transporting various forms of materials such as granules and powders, and can meet the transmission requirements of different distances and heights.
4. Automated operation: Supports one-click start/stop and timed loading, can be linked with the production line control system, reducing the intensity of manual operation.
5. Safe and reliable: There are no mechanical rotating parts in direct contact with the materials, resulting in low wear, few faults, low operating noise, and high safety.
6. Flexible and easy maintenance: Customizable transportation paths, suitable for different production line layouts; components can be disassembled and cleaned, convenient for daily maintenance, and low maintenance costs.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Product details

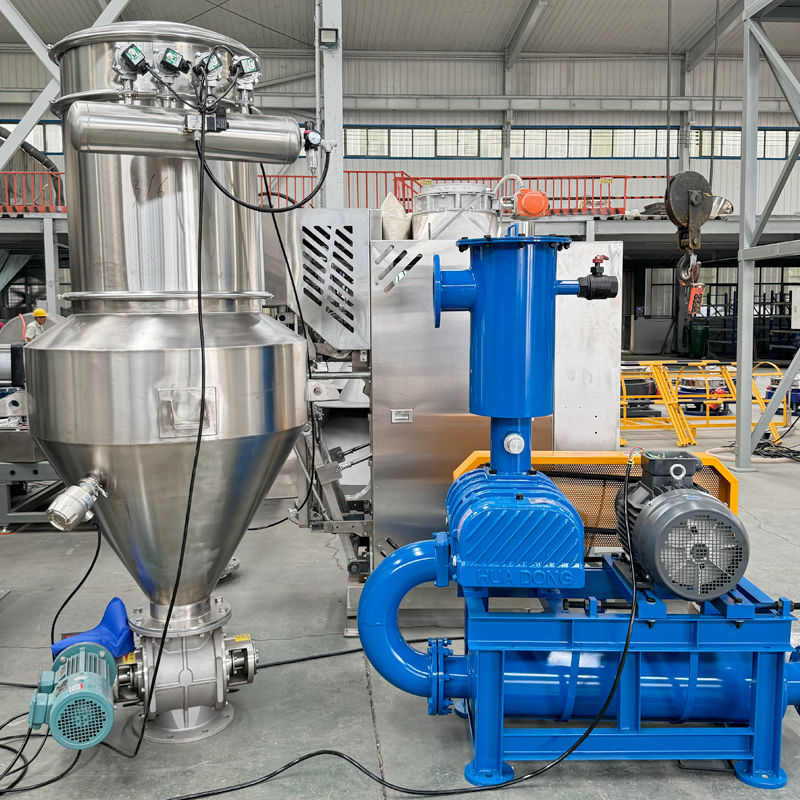

Production line diagram

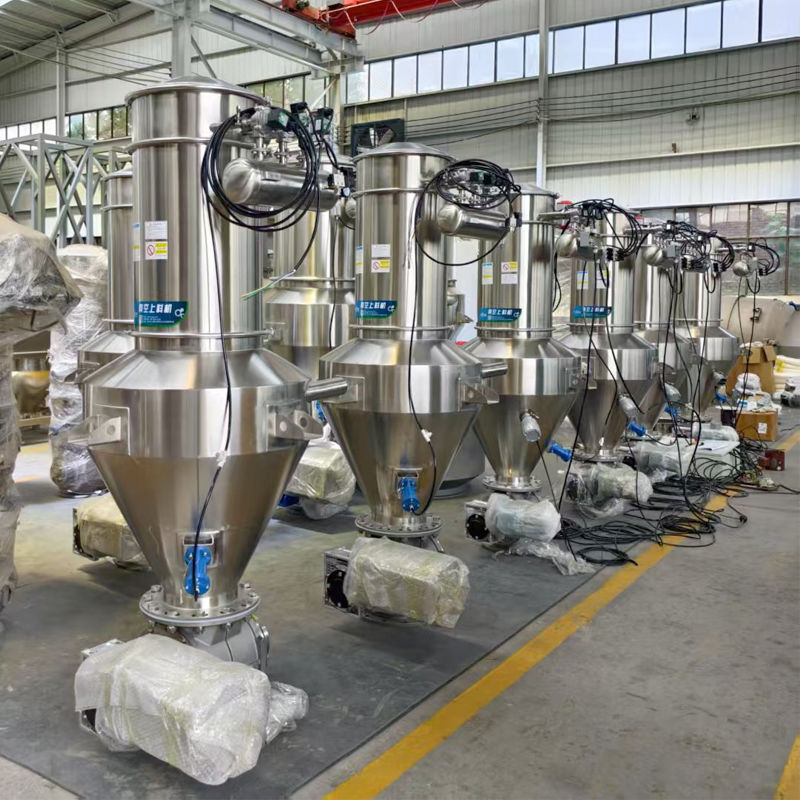

Product shows

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
