| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | EVERSUN |
| ได้รับการรับรอง: | ISO,CE |
| หมายเลขรุ่น: | สจล |
| จำนวนสั่งซื้อขั้นต่ำ: | 1ชุด |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | เคสไม้ส่งออกมาตรฐาน |
| เวลาการส่งมอบ: | ภายใน 7-15 วันทำงาน |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, MoneyGram, เวสเทิร์นยูเนี่ยน |
| สามารถในการผลิต: | 5000set/ปี |
| ความเคลื่อนไหว: | เป็นเส้นตรง | การใช้งาน: | การคัดกรองอนุภาคละเอียด |
|---|---|---|---|
| มุมการสั่น: | 45 ~ 60 องศา | ใบสมัคร: | การแปรรูปแร่, ถ่านหิน, อุตสาหกรรมเคมี |
| คำสำคัญ: | เครื่องสั่นหน้าจอเชิงเส้นสี่เหลี่ยมผืนผ้า | โหมดการทำงาน: | อัตโนมัติ |
| ชั้นตะแกรง: | ปรับแต่ง | เงื่อนไข: | สภาพใหม่ |
| สี: | ตามความต้องการของลูกค้า | อุปกรณ์ขับเคลื่อน: | มอเตอร์สั่น |
| วัสดุ: | เหล็กกล้าคาร์บอน, SUS304, SUS316L | แรงดันไฟฟ้า: | 380V |
| การทำงาน: | การคัดกรอง | วัสดุหน้าจอ: | เหล็กกล้าไร้สนิม / เหล็กกล้าคาร์บอน |
Product description
The linear vibrating screen is a highly efficient and versatile industrial screening device. Its name comes from the linear jumping movement trajectory of materials on the screen surface. This equipment is renowned for its large processing capacity, high screening efficiency, and sturdy and durable structure. It can be equipped with multiple layers of screens to simultaneously grade materials. Due to its low energy consumption, low noise, and ease of maintenance and sealing, it is widely used in various industries such as chemical engineering, food, metallurgy, and building materials for precise grading, impurity removal, or dehydration of granular and powdered materials.
Working principle
The working principle of the linear vibrating screen is based on the excitation force generated by the vibrating motor. The screen machine is usually equipped with two vibrating motors of the same model. When they rotate synchronously in opposite directions, the excitation forces produced by the motors cancel each other out in the direction parallel to the motor shaft, but superimpose in the direction perpendicular to the motor shaft to form a powerful resultant force. It is this single, directionally determined excitation force that forces the screen box and the screen surface to produce a directional reciprocating linear vibration.
Under the action of this vibration, the materials on the screen surface are continuously thrown up and move forward. Particles smaller than the aperture of the screen holes pass through the holes during this process and become undersize products, while materials larger than the screen hole diameter continue to move forward along the screen surface and are eventually discharged from the discharge port, thus achieving precise screening and classification of materials. The inclination angle of the vibration trajectory can usually be adjusted by changing the installation angle of the vibration motor to optimize the processing efficiency for different materials.
Product features
Main features
1. Efficient processing: Materials move in a straight line, the screening speed is fast, and the output is large.
2. Simple structure: The entire machine has a simple design, and installation and maintenance are convenient.
3. Smooth operation: Dual motor drive, stable operation, and low noise.
4. Sealing design: Effectively prevents dust from escaping, meeting the requirements of clean production.
5. Strong and durable: Overall rigidity is good, and the core components have a long service life.
6. Multi-layer classification: Multiple layers of screen meshes can be configured to achieve multi-level classification.
Core Advantage
1. High output with low cost: Large unit processing capacity, low energy consumption and maintenance costs.
2. Flexible adjustment: The excitation force and inclination angle can be adjusted to meet different material requirements.
3. Strong versatility: Widely applicable to various granular and powder materials for screening, impurity removal and dehydration operations.
Product parameter
| Model | Layer | Screening Area(mm) |
Mesh size(mm) | Particle Size(mm) |
Capacity(t/h) | Power (kw) |
Double Amplitude(mm) |
| DZSF-612 | 1 to 5 | 600*1200 | 0.02-20 | ≤20 | ≤3 | 0.37×2 | 6 to 10 |
| DZSF-520 | 1 to 5 | 500*2000 | 0.02-20 | ≤20 | ≤5 | 0.37×2 | 6 to 10 |
| DZSF-525 | 1 to 5 | 500*2500 | 0.02-20 | ≤20 | ≤8 | 0.37×2 | 6 to 10 |
| DZSF-1020 | 1 to 5 | 1000*2000 | 0.02-20 | ≤20 | ≤12 | 0.75×2 | 6 to 10 |
| DZSF-1025 | 1 to 5 | 1000*2500 | 0.02-20 | ≤20 | ≤16 | 0.75×2 | 6 to 10 |
| DZSF-1030 | 1 to 5 | 1000*3000 | 0.02-20 | ≤20 | ≤20 | 1.1×2 | 6 to 10 |
| DZSF-1224 | 1 to 5 | 1200*2400 | 0.02-20 | ≤20 | ≤23 | 1.5×2 | 6 to 10 |
| DZSF-1525 | 1 to 5 | 1500*2500 | 0.02-20 | ≤20 | ≤28 | 1.5×2 | 6 to 10 |
| DZSF-1530 | 1 to 5 | 1500*3000 | 0.02-20 | ≤20 | ≤32 | 2.2×2 | 6 to 10 |
Production line diagram
1.Forklift filling the material into the storage hopper
2.A belt conveyor under the hopper, to transport the material to a linear vibrating screen
3.And another belt conveyor can transport the sieved material to other place
4.The belt conveyor can with dust cover and can add wheels

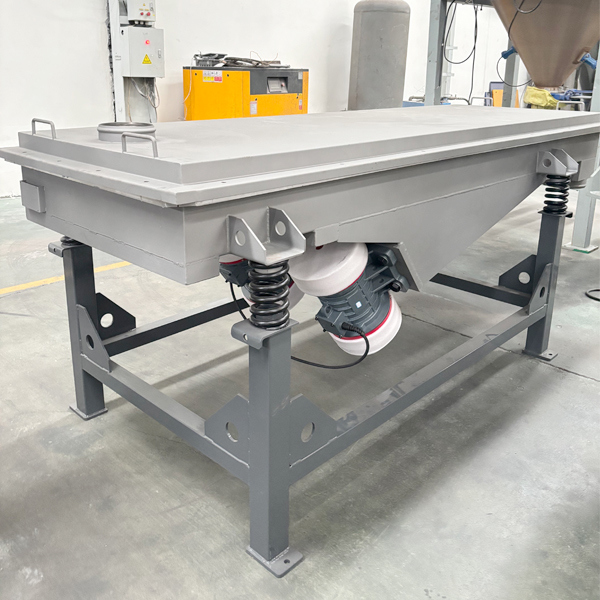

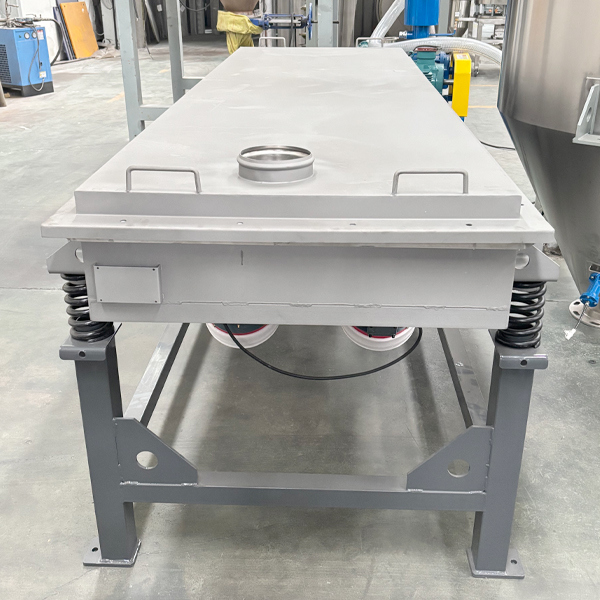

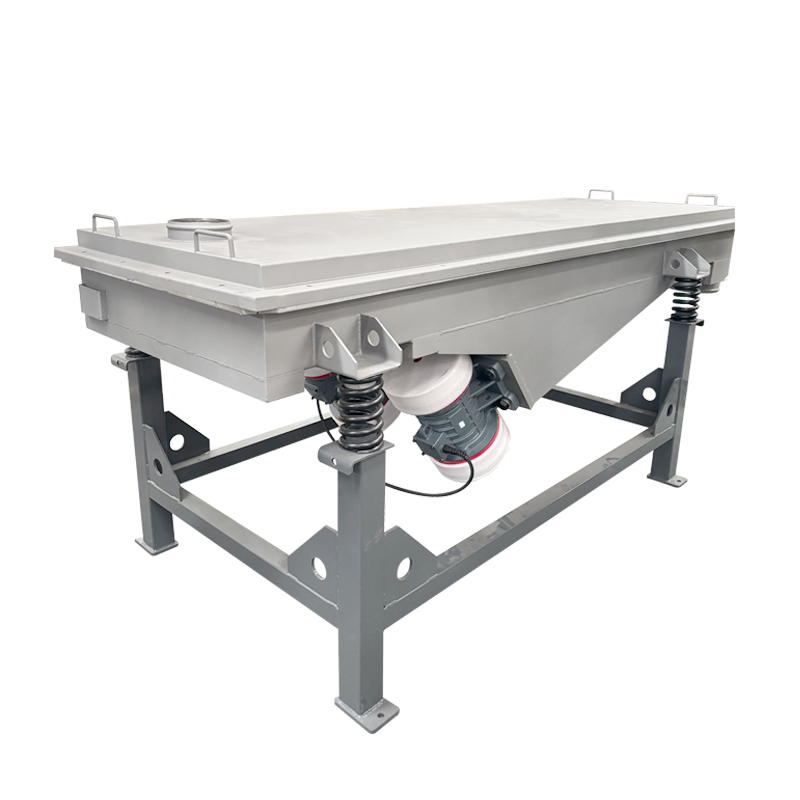

Product details
