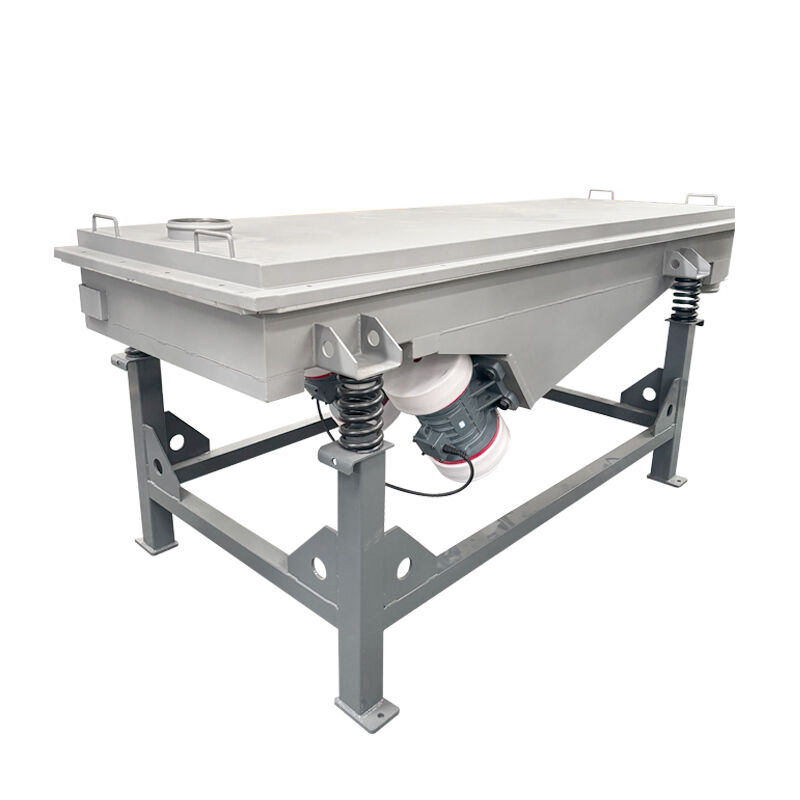

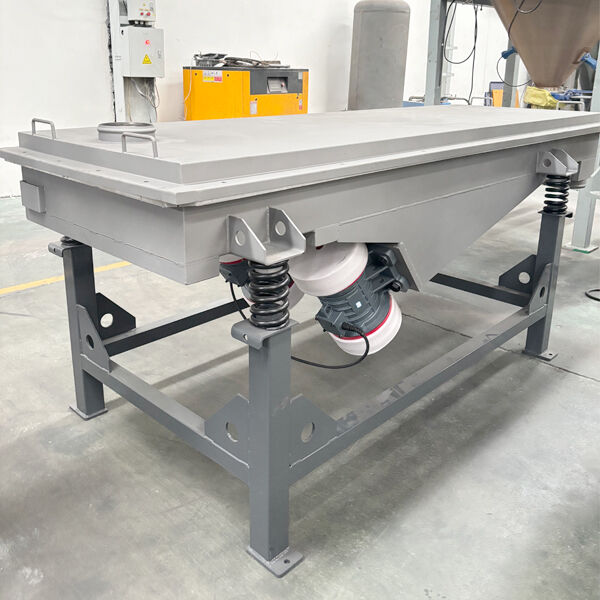

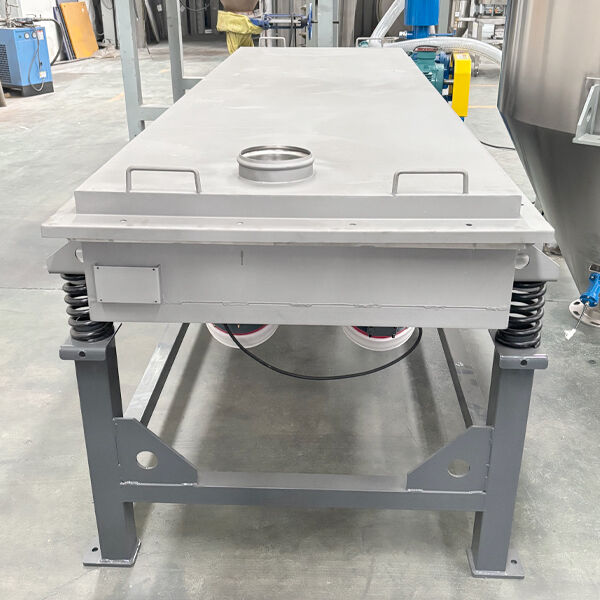

Linear Vibrating Screen

Product description

The linear screen is an efficient and versatile industrial screening equipment. Its core feature is the use of dual-motor synchronous drive, which enables the screen body to generate a directional linear reciprocating motion, thereby achieving rapid advancement and screening of the materials. The equipment has a compact and simple structure design, operates smoothly with low noise, has excellent sealing performance, and can effectively control dust. It is particularly suitable for efficient classification, impurity removal and filtration of various dry granular materials. It has the advantages of large processing capacity, high screening accuracy, simple maintenance and strong adaptability, and plays a key role in production lines in many industries such as chemical, building materials, food and metallurgy.


Working principle
The working principle of the linear screen is based on directional linear vibration. The equipment usually installs two synchronous and counter-rotating vibration motors. The excitation forces generated by these motors add up in the direction parallel to the screen surface, forming a powerful directional driving force; while in the direction perpendicular to the screen surface, the forces cancel each other out. This causes the screen box and the screen mesh to generate reciprocating linear vibrations as a whole.
After being fed into the screen, the processed materials are subjected to continuous linear vibration, causing them to be slightly lifted up and leap forward in a regular manner. During this process, particles smaller than the screen holes can pass through the mesh and achieve separation, while larger particles continue to move forward along the screen surface until they are discharged from the discharge end, thus completing the screening or grading operation efficiently and continuously. The key point is that the materials exhibit a clear and rapid linear movement trajectory on the screen.

Product features

Main features
1. High efficiency: Materials move in a straight line, the screening trajectory is clear, and the processing capacity is large.
2. Smooth operation: Dual motors are driven synchronously, with self-balancing design, small vibration transmission, stable operation and low noise.
3. Simple structure: No complex transmission mechanisms, overall rigidity is strong, easy to maintain and clean.
4. Sealing and environmental protection: Can be designed with a fully enclosed structure, effectively preventing dust from escaping and improving the working environment.
5. Precise screening: Multiple layers of screen mesh are configured flexibly, enabling multi-level precise classification of materials simultaneously.

Core advantages:
High adaptability: Suitable for both dry and wet sieving, performs well on materials of various particle sizes and moisture contents.
Low energy consumption: The direct and efficient movement mode, low running resistance, and low energy consumption per unit processing volume.
Reliable and durable: Strong structure, mature and reliable key components, long lifespan, and low maintenance costs.
Easy integration: Compact design, easy to install in existing production lines, and smooth automation connection.


Product parameter

Production line diagram

1.Forklift filling the material into the storage hopper
2.A belt conveyor under the hopper, to transport the material to a linear vibrating screen
3.And another belt conveyor can transport the sieved material to other place
4.The belt conveyor can with dust cover and can add wheels
